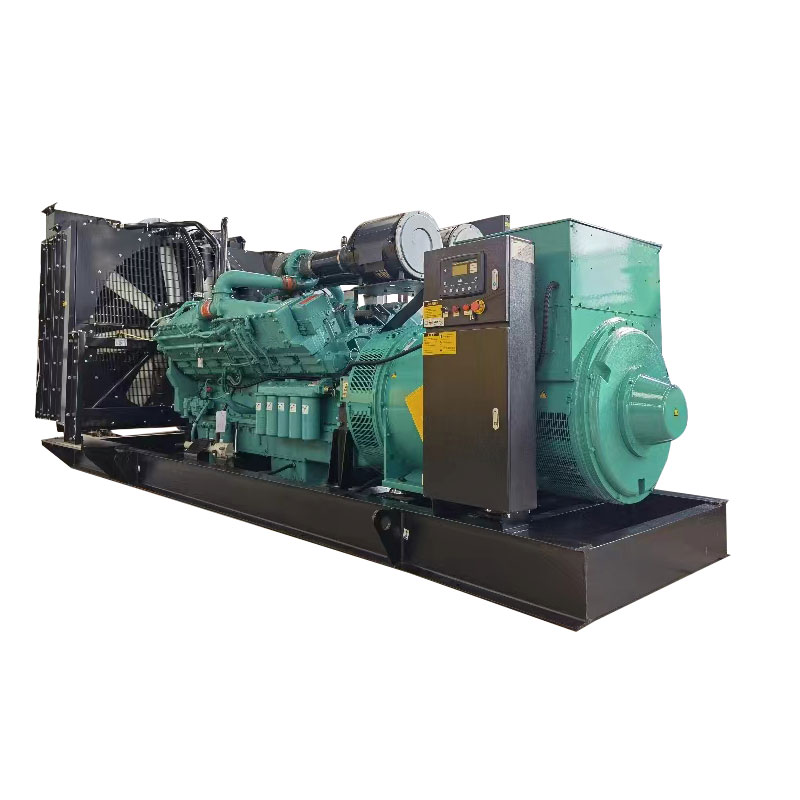

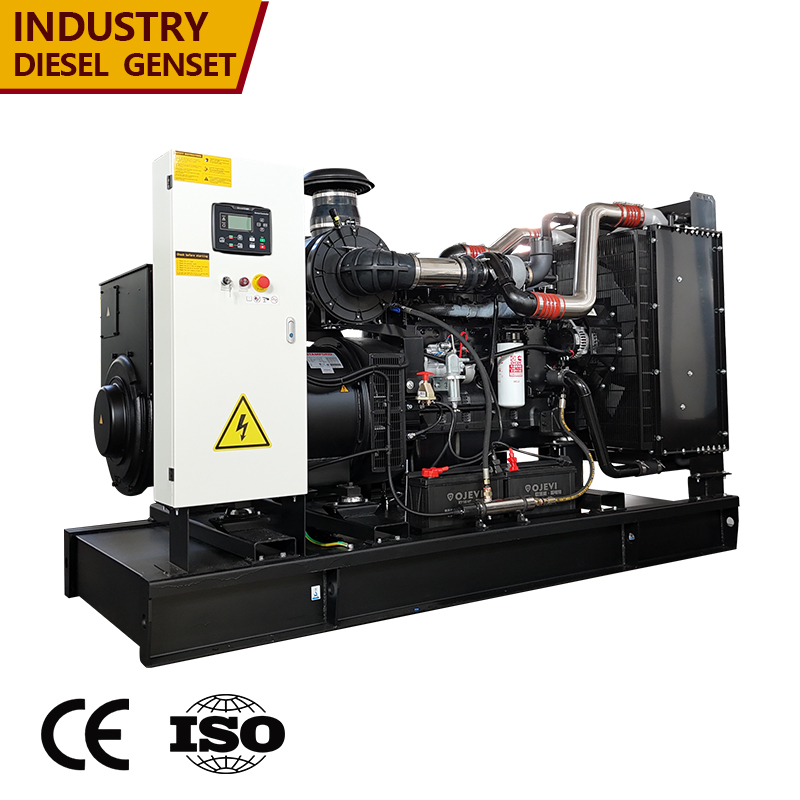

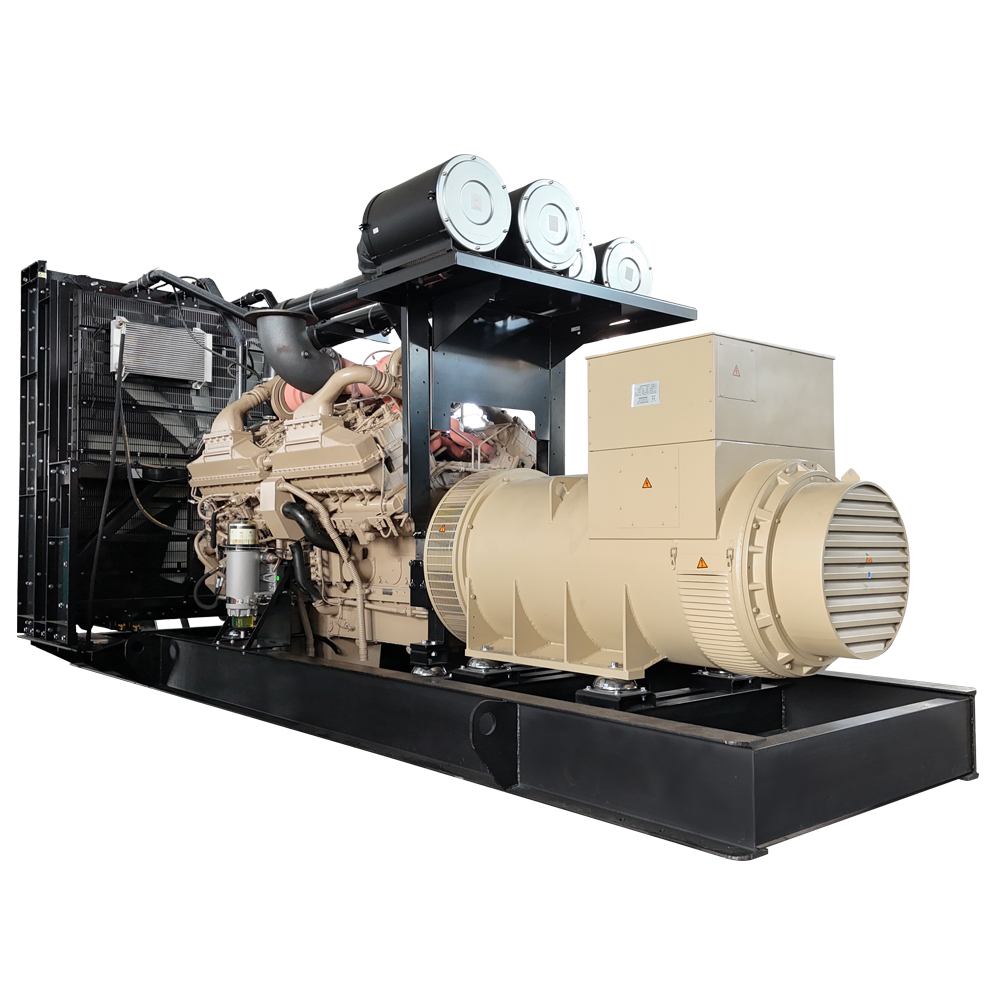

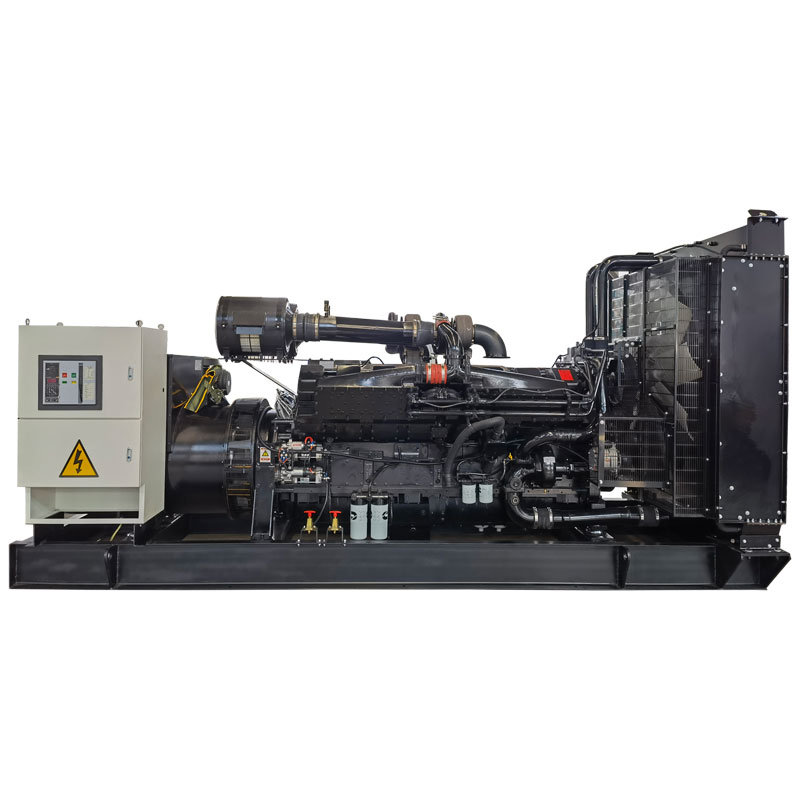

Cummins engine open type diesel generator

Cummins is the largest foreign engine invested enterprise in China which has invested more than 140 million US dollars. It owns Chongqing Cummins Engine Co., Ltd. (which produces M, N, K series ) and Dongfeng Cummins Engine Co., Ltd. (which produces B, C, L series ), producing the engines with universal global quality standards, providing reliable and efficient guarantee due to its international service network. The products comply with the standards based on ISO 3046、ISO 4001、ISO 8525、IEC 34-1、GB1105、GB/T 2820、CSH 22-2、VDE 0530 and YD/T502-2000《Requirements of diesel generator sets for telecommunications》.

inquiry
  • Description
  • 50HZ
  • 60HZ

Gongfeng Cummins Generator Sets(CCEC)

B, C, L series four-stroke diesel generators,with in-line 4-cylinder and 6-cylinder models, displacement including 3.9L、5.9L、8.3L、8.9L etc., power covered from 24KW to 220KW, integrated modular structural design, compact structure and weight, high efficiency and stable performance, low failure rate, low maintenance cost.

Chongqing Cummins Generator Sets(DCEC)

M、N、K series have more models like in-line 6-cylinder, V-type 12-cylinder and 16-cylinder, easy for operation and maintenance, power ranged from 200KW to 1200KW, with the displacement of 14L、18.9L、37.8L etc. The sets design for continuous power supply in view of its advanced technology ,reliable performance and long working hours. It can run steadily in various situations such as mining, power generation, highway , telecommunications,construction, hospital, oil field etc.

Cummins Diesel Generator structural features

(1) Most are equipped with unique PT fuel system(except for B、C series)
(2) Use ω combustion chamber.
(3) Roller type cam followers.
(4) Most of the fuel and oil passages are installed inside the cylinder block and cylinder head.
(5) Wet cylinder liner with phosphorization treatment.
(6) The crankshaft is forged with alloy steel, the journal is inductive hardening.
(7) The first ring groove of all pistons has nickel alloy cast iron inserts to improve the life.

Cummins sets supply standards:

Cummins Diesel Generator Engine:

CUMMINS direct injection internal combustion diesel engine

Alternator:

STAMFORD brush-less self-excited AC synchronous generator (optional PMG!)
Radiator with safety protection device
24V starting motor,24V self-charging generator, LCD intelligent self-starting control system

MCCB air protective switch

Built-in stainless steel absorber for general bottom frame
High-performance maintenance-free lead-acid battery and copper battery connection cable
Pressure-resistant, corrosion-resistant, weather-resistant fuel inlet and return oil pipelines, and a fast oil drain valve installed at the bottom of the diesel engine

Documentation

engine and generator original technical data / controller operation manual /instruction and maintenance manual / test report / delivery list

Cummins sets optional parts

ATS
Automatic parallel cabinet
Daily fuel tank
Self-starting screen
Remote computer interface
other spare parts

ModelPrime Power (KVA/KW)Standby Power (KVA/KW)Engine ModelDimension (MM)Weight (KG)
TPD20C5-1201622184B3.9-G11550×735×1420765
TPD20C5-2201622184B3.9-G21550×735×1420765
TPD25C5-1252028224B3.9-G11600×735×1420765
TPD25C5-2252028224B3.9-G21600×735×1420765
TPD40C5-1403244354BT3.9-G11680×735×1420770
TPD40C5-2403244354BT3.9-G21680×735×1420770
TPD55C5554560504BTA3.9-G21880×805×1450824
TPD65C5655272574BTA3.9-G21880×805×1450824
TPD80C5806388704BTA3.9-G112180×805×1450980
TPD90C590709977QSB3.9-G32280×805×1450980
TPD97C5-19778107866BT5.9-G12475×800×14701150
TPD97C5-29778107866BT5.9-G22475×800×14701185
TPD110C511087121966BT5.9-G22475×800×14701185
TPD120C5120961321066BTA5.9-G22620×800×14951280
TPD136C5 -1136109149119QSB5.9-G32650×880×14751350
TPD136C5-21361091491196BTAA5.9-G22620×800×14951280
TPD160C51601271751406BTAA5.9-G122620×800×14951300
TPD185C5-11851482031636CTA8.3-G12680×855×15601600
TPD185C5-21851482031636CTA8.3-G22680×855×15601550
TPD190C5190152210167QSB6.7-G42850×1100×17501550
TPD207C52071662281826CTAA8.3-G22790×1045×16401700
TPD250C5-1250200275220MTA11-G2A2700×1050×19152750
TPD250C5-2250200275220MTA11-G22700×1050×19152750
TPD250C5-3250200275220NTA855-G12900×1050×17803010
TPD250C5-42502002752206LTAA8.9-G22890×1080×17801900
TPD275C5275220300240NTA855-G1A2900×1050×17803010
TPD260C5-12602082862296LTAA8.9-G32890×1080×17802500
TPD260C5-2260208290232QSL8.9-G4 2890×1045×17801900
TPD284C52842273122506LTAA9.5-G33300×1150×17802500
TPD313C5-1313250344275MTAA11-G32800×1050×19152750
TPD313C5-2313250344275NTA855-G1B2900×1050×17802900
TPD313C5-3313250344275NTA855-G23000×1050×17802900
TPD343C5-1343275378302NTA855-G2A3000×1050×17802950
TPD350C5-2350280385308NTA855-G43000×1050×17803000
TPD325C53252603582866LTAA9.5-G13300×1150×17802750
TPD375C5-1375300413330NTAA855-G73000×1050×17802800
TPD375C5-2375300413330KTA19-G23580×1277×20653950
TPD450C5N/AN/A450360NTAA855-G7A3000×1050×17802900
TPD370C5370296408326QSZ13-G63420×1150×21903140
TPD385C53853104243406ZTAA13-G33380×1360×20103220
TPD415C5415332456365QSZ13-G73420×1150×21903140
TPD450C5-1450360495396KTA19-G33700×1275×21002900
TPD450C5-24503604953966ZTAA13-G43390×1360×20103220
TPD450C5-3450360495396QSZ13-G23390×1360×20103220
TPD440C54403524843876ZTAA13-G23390×1360×20103220
TPD500C5-1500400550440KTA19-G3A3700×1275×21004250
TPD500C5-2500400550440KTA19-G43700×1275×21004300
TPD465C5465372511409QSZ13-G5 3390×1360×20103220
TPD510C5510408560448QSZ13-G3 3390×1360×20103220
TPD525C5525420575462KTAA19-G53860×1735×23104550
TPD575C5575460633506KTAA19-G64055×1550×22354550
TPD650C5N/AN/A650520KTA19-G83650×1685×20954550
TPD688C5N/AN/A688550KTAA19-G6A4055×1550×22354700
TPD625C5625500687550KT38-G4055×1550×22106000
TPD713C5713570784627KTA38-G14200×1650×22106150
TPD725C5725580798638KT38-GA4200×1650×22106400
TPD750C5750600825660KTA38-G24350×1750×22106600
TPD800C5800640880704KTA38-G2B4350×1750×22106700
TPD910C59107281000800KTA38-G2A4350×1750×22106850
TPD1000C510008001100880KTA38-G54350×2090×22107150
TPD1250C5-1N/AN/A12501000KTA38-G94350×2090×22107250
TPD1250C5-21250100013751100KTA50-G34960×2070×23309140
TPD1375C51375110015131210KTA50-G85050×2260×24559400
TPD1475C51475118016221298KTA50-GS85250×2170×25409600
ModelPrime Power (KVA/KW)Standby Power (KVA/KW)Engine ModelDimension (MM)Weight (KG)
TPD23C6231825204B3.9-G21550×735×1420765
TPD34C6342738304BT3.9-G21680×735×1420770
TPD68C6685575604BTA3.9-G21880×805×1450824
TPD90C69072100804BTA3.9-G112180×805×1450980
TPD114C6114911251006BT5.9-G22475×800×14701185
TPD130C61301041431156BTA5.9-G22620×800×14951185
TPD150C61501201651326BTAA5.9-G22620×800×14951185
TPD170C61701361881506BTAA5.9-G122620×800×14951300
TPD193C61931542121706CTA8.3-G22680×855×15601550
TPD216C62161732381906CTAA8.3-G22790×1045×16401700
TPD275C6N/AN/A275220NT855-GA2900×1050×17802800
TPD265C62652122902336LTAA8.9-G22890×1080×17802200
TPD313C6313250344275NTA855-G12900×1050×17802900
TPD288C62882303162536LTAA8.9-G32890×1055×17802250
TPD300C63002403302646LTAA9.5-G32890×1080×17802500
TPD344C6-1344275375300NTA855-G1B3000×1050×17802950
TPD344C6-2344275375300NTA855-G23000×1050×17802950
TPD315C63152523472776LTAA9.5-G12900×1060×17802640
TPD398C6398318438350NTA855-G33000×1050×17802950
TPD386C63863094243396ZTAA13-G33380×1360×20103220
TPD405C6405324445356QSZ13-G63420×1150×21903140
TPD438C6438350481385KTA19-G23700×1275×21002900
TPD443C64433544873896ZTAA13-G23380×1360×20103220
TPD455C6-14553645004006ZTAA13-G43380×1360×20103220
TPD455C6-2455364500400QSZ13-G23390×1360×20103220
TPD465C6465372511409QSZ13-G73390×1360×20103220
TPD512C6512410564451KTA19-G33700×1275×21002900
TPD511C6-1511409562450QSZ13-G5 3390×1360×20103220
TPD511C6-2511409563450QSZ13-G3 3390×1360×20103220
TPD562C6-1562450618495KTA19-G3A3700×1275×21004250
TPD562C6-2562450618495KTA19-G43700×1275×21004300
TPD587C6587470646517KTAA19-G53860×1735×23104550
TPD750C6N/AN/A750600KTAA19-G6A4055×1550×22354550
TPD775C6775620850680KT38-G4055×1550×22106000
TPD875C6875700963770KTA38-G14200×1650×22106150
TPD906C6906725997798KTA38-G24350×1750×22106600
TPD938C69387501031825KTA38-G2B4350×1750×22106700
TPD1000C610008001100880KTA38-G2A4350×1750×22106850
TPD1125C611259001238990KTA38-G44350×2090×22107150
TPD1525C6N/AN/A15251220KTA38-G94350×2090×22107250
TPD1375C61375110015131210KTA50-G34960×2070×23309140
TPD1575C61575126017331386KTA50-G95050×2260×24559400
