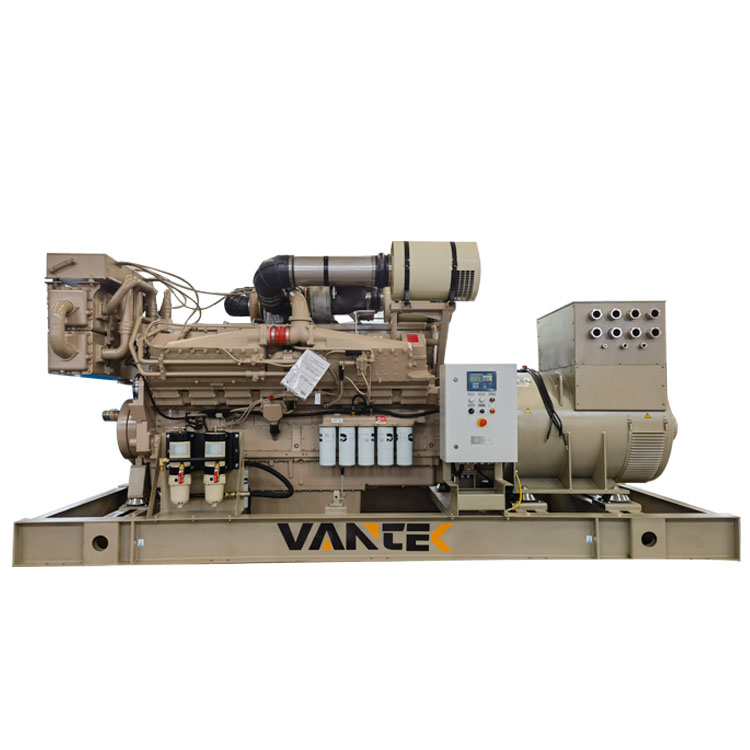

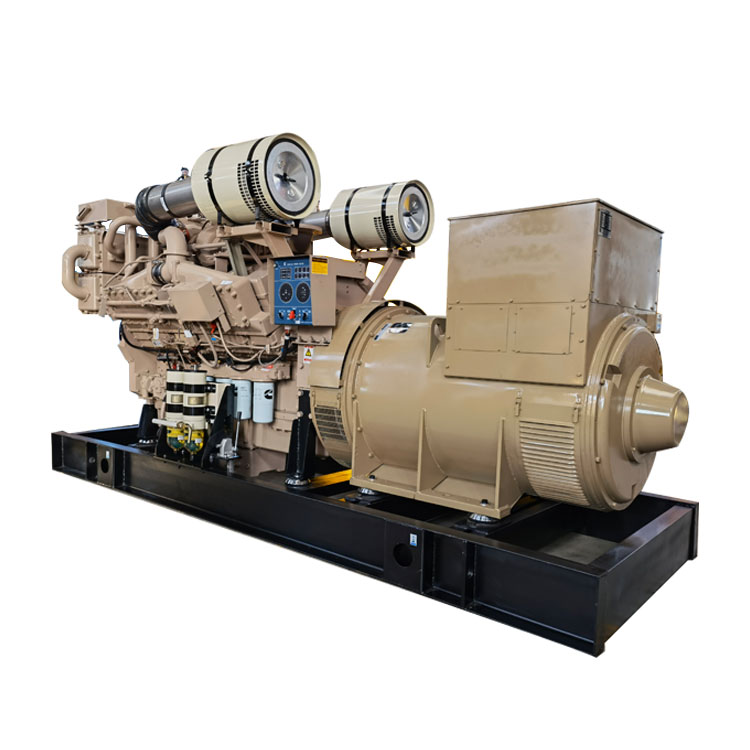

Cummins marine diesel generator

inquiry
  • Description
  • 50Hz/1500rpm
  • 60Hz/1800rpm

CUMMINS is a leading global power equipment manufacturer. It devotes into design, manufacturing and distribution on the engines and related technologies including fuel systems, control systems, intake air treatment, filtration systems, exhaust gas treatment systems and power systems, and provides corresponding after-sales services. The displacement of CUMMINS products covers from 3.9 to 50 liters, and the power range is 24 to 1429KW.

CUMMINS marine diesel generator components are Dongfeng CUMMINS (DCEC) and Chongqing CUMMINS (CCEC). Dongfeng CUMMINS (DCEC) is mainly committed to low-power products, and its power range is 24 to 419KW, while Chongqing CUMMINS (CCEC) focuses on the engines with power coverage from 254 to 1429KW.

The main features of CUMMINS marine diesel generator:

1. Advanced design and sophisticated manufacturing, adapt to a variety of severe working  conditions, high strength, strong heavy load operation capacity.

2. The cylinder block and cylinder head choose an integrated design, which prevents the occurrence of engine water leakage and oil leakage, the parts are 40% fewer than other similar engines, and the failure rate is greatly reduced.

3. Excellent reliability. Selecting forged steel camshaft and crankshaft, high-strength cylinder block design, many parts are cast on the cylinder block, with high rigidity, high pressure resistance and longer service life.

4. Rotor high-pressure fuel pump, less energy loss, more stronger power, lower fuel consumption, and effectively reduce noise.

5. The cylinder bore adopts the platform net honing design. The perfect geometric structure effectively prevents the oil leakage. The new piston ring assembly and the gasket hemming molding are used to reduce the oil loss.

6. Three-stage fuel filtration ensures a balanced level of power dispersion, protects the main components of the fuel system, and extends engine life to the maximum.

7. CUMMINS PT fuel system, ultra-high injection pressure, make sure good atomization and full combustion.

8.Efficient Holset exhaust turbocharger can ensure more sufficient air intake, improve engine efficiency, further improve combustion, reduce engine fuel consumption, low speed response and strong power.

9. All types of parts have strong versatility, high degree of serialization, easy for maintenance.

10. Both the cylinder block and the cylinder head select a built-in pressure lubrication channel, which has a compact structure and low failure rate.

■ CCS,BV,ABS,RINA,KR CERTIFICATE ■ IMO EMISSION CERTIFICATE ■ STAMFORD,LEROY-SOMER,MARATHON MARINE ALTERNATOR AS OPTIONAL ■ HEAT EXCHANGER COOLED AND KEEL COOLEDAS OPTIONAL

Generator spec.Engine Spec.DimensionsWeight
ModelRated powerFrenquency/voltageEngine modelPower/Speed
kWkVAHz/ VkW/RPML×W×H(mm)(kg)
CCFJ40J-WTP405050/4004BTA3.9-GM4747/15001670*850*1270800
CCFJ50J-WTP5062.550/4006BT5.9-GM8383/15001900*900*13001000
CCFJ64J-WTP648050/4006BT5.9-GM8383/15001900*900*13001100
CCFJ75J-WTP7593.850/4006BTA5.9-GM100100/15001900*900*13001250
CCFJ90J-WTP90112.550/4006BTA5.9-GM100100/15002020*900*13001300
CCFJ100J-WTP10012550/4006CT8.3-GM115115/15002080*900*13601650
CCFJ120J-WTP12015050/4006CT8.3-GM115115/15002120*900*13601700
CCFJ150J-WTP150187.550/4006CTA8.3-GM155155/15002220*1000*17901720
CCFJ160J-WTP16020050/4006LTAA8.9-GM200200/15002250*1000*17901750
CCFJ200J-WTP20025050/400N855-DM240/15002760*1000*17902700
CCFJ250J-WTP250312.550/400N855-DM284/15002760*1000*17902800
CCFJ280J-WTP28035050/400N855-DM317/15002998*1000*17902950
CCFJ300J-WTP30037550/400K19-DM358/15002998*1000*17903360
CCFJ350J-WTP350437.550/400K19-DM410/15003170*1000*19203480
CCFJ400J-WTP40050050/400K19-DM448/15003170*1000*19203650
CCFJ680J-WTP68085050/400K38-DM746/15004050*1500*24807200
CCFJ800J-WTP800100050/400K38-DM880/15004100*1500*24807350
CCFJ1000J-WTP1000125050/400K50-DM1097/15004500*1500*24809500
Generator spec.Engine Spec.DimensionsWeight
ModelRated powerFrenquency/voltageEngine modelPower/Speed
kWkVAHz/ VkW/RPML×W×H(mm)(kg)
CCFJ40J-WTP405060/4404BTA3.9-GM6565/18001670*850*1270700
CCFJ50J-WTP5062.560/4404BTA5.9-GM6565/18001760*900*1300720
CCFJ64J-WTP648060/4406BT5.9-GM100100/18002020*900*1300950
CCFJ75J-WTP7593.860/4406BT5.9-GM100100/18001980*900*1300980
CCFJ90J-WTP90112.560/4406BTA5.9-GM120120/18001980*900*13001000
CCFJ100J-WTP10012560/4406BTA5.9-GM120120/18002100*810*13601080
CCFJ120J-WTP12015060/4406CTA8.3-GM175175/18002120*900*13601350
CCFJ150J-WTP150187.560/4406CTA8.3-GM175175/18002180*900*13601420
CCFJ250J-WTP250312.560/440N855-DM287/18002880*1000*17902560
CCFJ280J-WTP28035060/440N855-DM313/18002880*1000*17902650
CCFJ350J-WTP350437.560/440K19-DM425/18003360*1000*19203350
CCFJ400J-WTP40050060/440K19-DM485/18003360*1000*19203400
CCFJ450J-WTP450562.560/440K19-DM507/18003360*1100*24803520
CCFJ700J-WTP70087560/440K38-DM821/18003760*1500*24806950
CCFJ800J-WTP800100060/440K38-DM970/18003760*1500*24807100
CCFJ1150J-WTP1150143860/440K50-DM1291/18004500*1500*24809200
