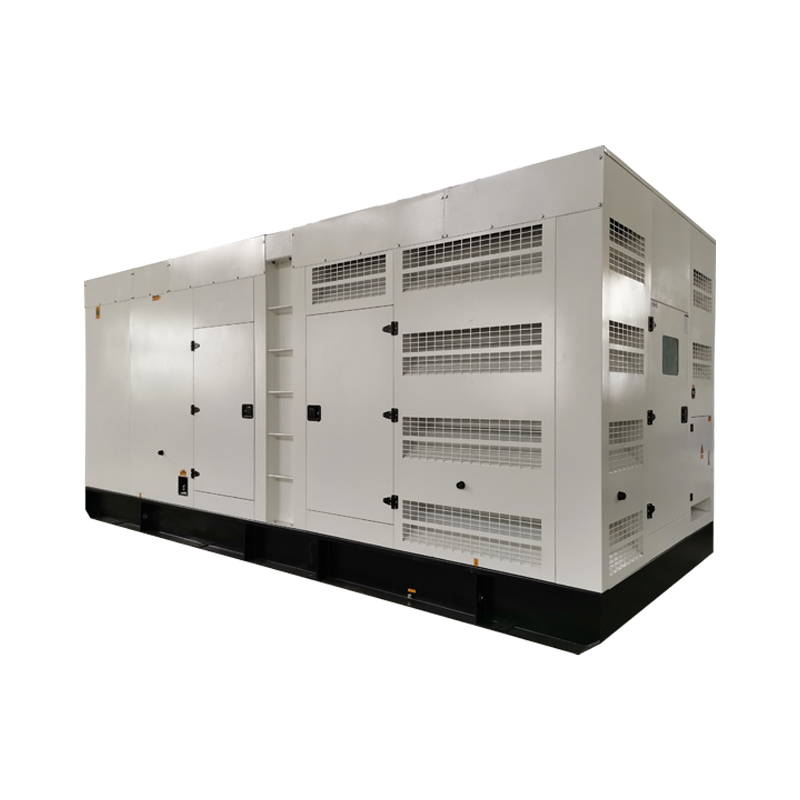

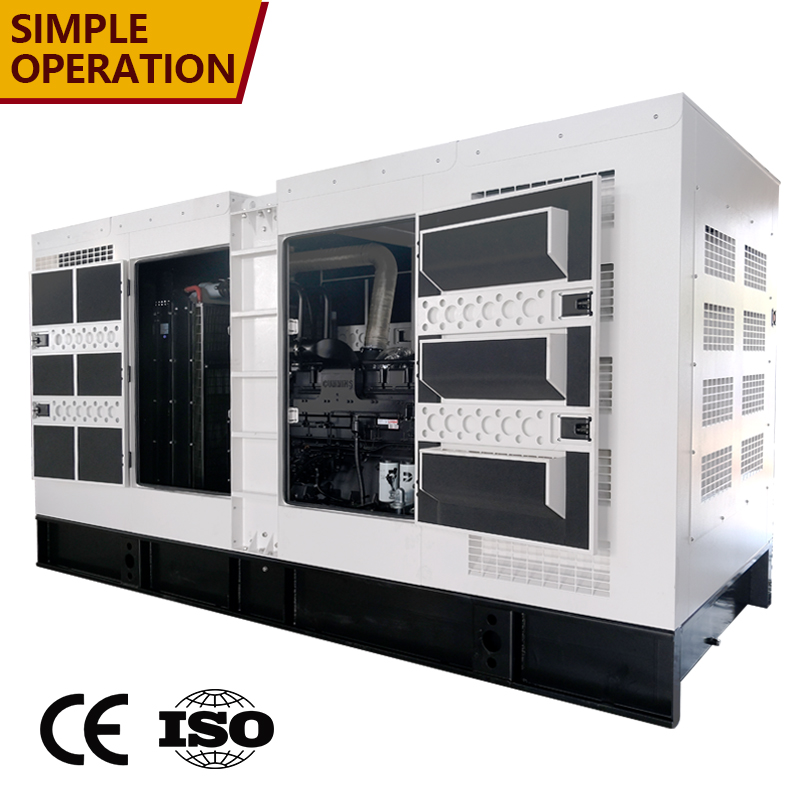

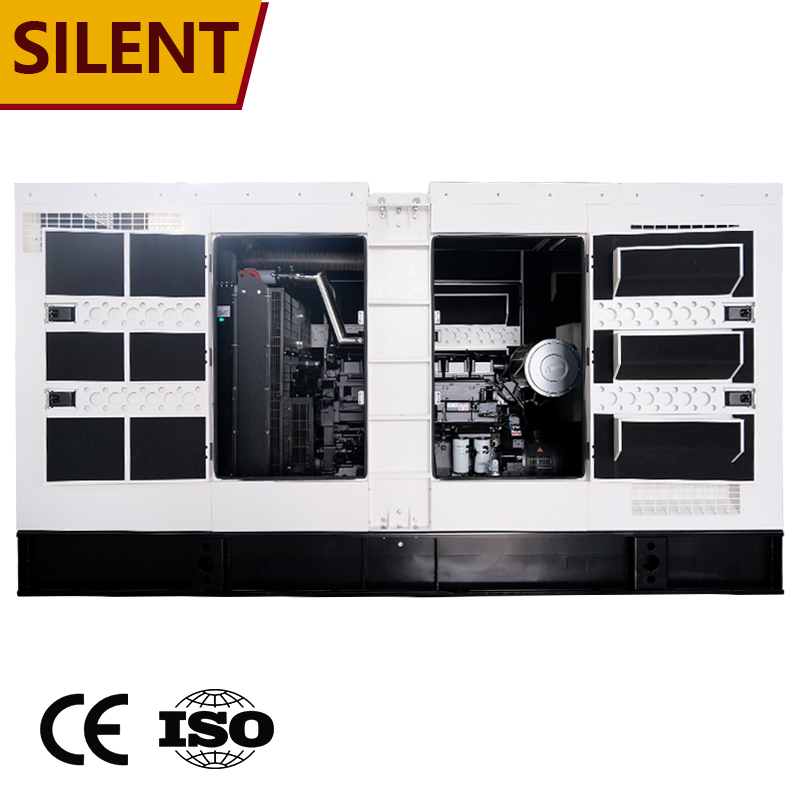

Cummins Silent Type Diesel Generator

inquiry
  • Description
  • 50HZ
  • 60HZ

Cummins is the largest foreign engine invested enterprise in China which has invested more than 140 million US dollars. It owns Chongqing Cummins Engine Co., Ltd. (which produces M, N, K series ) and Dongfeng Cummins Engine Co., Ltd. (which produces B, C, L series ), producing the engines with universal global quality standards, providing reliable and efficient guarantee due to its international service network. The products comply with the standards based on ISO 3046、ISO 4001、ISO 8525、IEC 34-1、GB1105、GB/T 2820、CSH 22-2、VDE 0530 and YD/T502-2000《Requirements of diesel generator sets for telecommunications》.

Gongfeng Cummins Generator Sets(CCEC): B, C, L series four-stroke diesel generators,with in-line 4-cylinder and 6-cylinder models, displacement including 3.9L、5.9L、8.3L、8.9L etc., power covered from 24KW to 220KW, integrated modular structural design, compact structure and weight, high efficiency and stable performance, low failure rate, low maintenance cost.

Chongqing Cummins Generator Sets(DCEC): M、N、K series have more models like in-line 6-cylinder, V-type 12-cylinder and 16-cylinder, easy for operation and maintenance, power ranged from 200KW to 1200KW, with the displacement of 14L、18.9L、37.8L etc. The sets design for continuous power supply in view of its advanced technology ,reliable performance and long working hours. It can run steadily in various situations such as mining, power generation, highway , telecommunications,construction, hospital, oil field etc.

Cummins generators structural features:

(1) Most are equipped with unique PT fuel system(except for B、C series)

(2) Use ω combustion chamber.

(3) Roller type cam followers.

(4) Most of the fuel and oil passages are installed inside the cylinder block and cylinder head.

(5) Wet cylinder liner with phosphorization treatment.

(6) The crankshaft is forged with alloy steel, the journal is inductive hardening.

(7) The first ring groove of all pistons has nickel alloy cast iron inserts to improve the life.

Cummins sets supply standards:
Diesel Engine:CUMMINS direct injection internal combustion diesel engine

Alternator:STAMFORD brush-less self-excited AC synchronous generator (optional PMG!)

Radiator with safety protection device

24V starting motor,24V self-charging generator, LCD intelligent self-starting control system

MCCB air protective switch

Built-in stainless steel absorber for general bottom frame

High-performance maintenance-free lead-acid battery and copper battery connection cable

Pressure-resistant, corrosion-resistant, weather-resistant fuel inlet and return oil pipelines, and a fast oil drain valve installed at the bottom of the diesel engine

Documentation : engine and generator original technical data / controller operation manual /instruction and maintenance manual / test report / delivery list

Cummins sets optional parts:
ATS
Automatic parallel cabinet
Daily fuel tank
Self-starting screen
Remote computer interface
other spare parts

ModelPrime Power (KVA/KW)Standby Power (KVA/KW)Engine ModelDimension (MM)Weight (KG)
TPD20C5-1201622184B3.9-G12200×1000×15401320
TPD20C5-2201622184B3.9-G22200×1000×15401320
TPD25C5-1252028224B3.9-G12400×1000×15401360
TPD25C5-2252028224B3.9-G22400×1000×15401360
TPD40C5-1403244354BT3.9-G12500×1100×15401390
TPD40C5-2403244354BT3.9-G22500×1000×15401390
TPD55C5554560504BTA3.9-G22500×1100×15801390
TPD65C5655272574BTA3.9-G22500×1000×15801480
TPD80C5806388704BTA3.9-G112800×1130×15801530
TPD90C590709977QSB3.9-G32900×1130×17151500
TPD97C5-19778107866BT5.9-G13200×1130×17151680
TPD97C5-29778107866BT5.9-G23200×1130×17151680
TPD110C511087121966BT5.9-G23200×1130×17151680
TPD120C5120961321066BTA5.9-G23200×1130×17151680
TPD136C5 -1136109149119QSB5.9-G33200×1130×17151750
TPD136C5-21361091491196BTAA5.9-G23200×1130×17151760
TPD160C51601271751406BTAA5.9-G123200×1130×17151850
TPD185C5-11851482031636CTA8.3-G13400×1130×19152150
TPD185C5-21851482031636CTA8.3-G23400×1130×19152200
TPD190C5190152210167QSB6.7-G43600×1330×20652350
TPD207C52071662281826CTAA8.3-G23600×1330×20652450
TPD250C5-1250200275220MTA11-G2A3600×1330×20653550
TPD250C5-2250200275220MTA11-G23600×1330×20653550
TPD250C5-3250200275220NTA855-G14000×1400×21904150
TPD250C5-42502002752206LTAA8.9-G23600×1330×20652600
TPD275C5275220300240NTA855-G1A4000×1400×21904150
TPD260C5-12602082862296LTAA8.9-G34000×1400×21903900
TPD260C5-2260208290232QSL8.9-G44000×1422×21903300
TPD284C52842273122506LTAA9.5-G34600×1622×25154250
TPD313C5-1313250344275MTAA11-G34000×1400×21903900
TPD313C5-2313250344275NTA855-G1B4000×1400×21904100
TPD313C5-3313250344275NTA855-G24000×1400×21904100
TPD343C5-1343275378302NTA855-G2A4000×1400×21904160
TPD350C5-2350280385308NTA855-G44000×1400×21904200
TPD325C53252603582866LTAA9.5-G14600×1622×25154500
TPD375C5-1375300413330NTAA855-G74000×1400×21904000
TPD375C5-2375300413330KTA19-G24600×1622×25155650
TPD450C5N/AN/A450360NTAA855-G7A4000×1400×21904100
TPD370C5370296408326QSZ13-G64600×1622×25154900
TPD385C53853104243406ZTAA13-G34600×1622×25154830
TPD415C5415332456365QSZ13-G74600×1622×25154900
TPD450C5-1450360495396KTA19-G34600×1622×25154800
TPD450C5-24503604953966ZTAA13-G44600×1622×25155100
TPD450C5-3450360495396QSZ13-G24600×1622×25155100
TPD440C54403524843876ZTAA13-G24600×1622×25155100
TPD500C5-1500400550440KTA19-G3A4600×1622×25155750
TPD500C5-2500400550440KTA19-G44600×1622×25155750
TPD465C5465372511409QSZ13-G54600×1622×25155150
TPD510C5510408560448QSZ13-G34600×1622×25155150
TPD525C5525420575462KTAA19-G54800×1822×25156090
TPD575C5575460633506KTAA19-G64800×1822×25156090
TPD650C5N/AN/A650520KTA19-G84800×1822×25155860
TPD688C5N/AN/A688550KTAA19-G6A4800×1822×25156900
TPD625C5625500687550KT38-G5800×2000×25507200
TPD713C5713570784627KTA38-G15800×2000×25507450
TPD725C5725580798638KT38-GA5800×2000×25507600
TPD750C5750600825660KTA38-G25800×2000×25507800
TPD800C5800640880704KTA38-G2B5900×2270×25507900
TPD910C59107281000800KTA38-G2A5900×2270×25508200
TPD1000C510008001100880KTA38-G55900×2270×25508300
TPD1250C5-1N/AN/A12501000KTA38-G940′HQ11500
TPD1250C5-21250100013751100KTA50-G340′HQ13200
TPD1375C51375110015131210KTA50-G840′HQ13200
TPD1475C51475118016221298KTA50-GS840′HQ13400
ModelPrime Power (KVA/KW)Standby Power (KVA/KW)Engine ModelDimension (MM)Weight (KG)
TPD23C6231825204B3.9-G22200×1000×15401320
TPD34C6342738304BT3.9-G22500×1100×15401390
TPD68C6685575604BTA3.9-G22500×1100×15801480
TPD90C69072100804BTA3.9-G112800×1130×15801530
TPD114C6114911251006BT5.9-G23200×1130×17151680
TPD130C61301041431156BTA5.9-G23200×1130×17151720
TPD150C61501201651326BTAA5.9-G23200×1130×17151720
TPD170C61701361881506BTAA5.9-G123200×1130×17151850
TPD193C61931542121706CTA8.3-G23400×1130×19152200
TPD216C62161732381906CTAA8.3-G23600×1330×20652450
TPD275C6N/AN/A275220NT855-GA3600×1330×20653600
TPD265C62652122902336LTAA8.9-G23600×1330×20653000
TPD313C6313250344275NTA855-G13600×1330×20653680
TPD288C62882303162536LTAA8.9-G33600×1330×20653100
TPD300C63002403302646LTAA9.5-G33600×1330×20652540
TPD344C6-1344275375300NTA855-G1B4000×1422×21903300
TPD344C6-2344275375300NTA855-G24000×1422×21903800
TPD315C63152523472776LTAA9.5-G14000×1422×21903500
TPD398C6398318438350NTA855-G34000×1422×21903800
TPD386C63863094243396ZTAA13-G34600×1622×25154830
TPD405C6405324445356QSZ13-G64600×1622×25154900
TPD438C6438350481385KTA19-G24600×1622×25154800
TPD443C64433544873896ZTAA13-G24600×1622×25154830
TPD455C6-14553645004006ZTAA13-G44600×1622×25154830
TPD455C6-2455364500400QSZ13-G24600×1622×25155100
TPD465C6465372511409QSZ13-G74600×1622×25155100
TPD512C6512410564451KTA19-G34600×1622×25154800
TPD511C6-1511409562450QSZ13-G54600×1622×25155150
TPD511C6-2511409563450QSZ13-G34600×1622×25155150
TPD562C6-1562450618495KTA19-G3A4600×1622×25155750
TPD562C6-2562450618495KTA19-G44600×1622×25155750
TPD587C6587470646517KTAA19-G54800×1822×25156090
TPD750C6N/AN/A750600KTAA19-G6A4800×1822×25156090
TPD775C6775620850680KT38-G5800×2000×25507200
TPD875C6875700963770KTA38-G15800×2000×25507450
TPD906C6906725997798KTA38-G25800×2000×25507800
TPD938C69387501031825KTA38-G2B5900×2270×25507900
TPD1000C610008001100880KTA38-G2A5900×2270×25508200
TPD1125C611259001238990KTA38-G45900×2270×25508300
TPD1525C6N/AN/A15251220KTA38-G940′HQ11500
TPD1375C61375110015131210KTA50-G340′HQ13200
TPD1575C61575126017331386KTA50-G940′HQ13200
