Soundproof diesel generator

HOME / Industry diesel generator set / Soundproof diesel generator / HYUNDAI Silent Type Diesel Generator

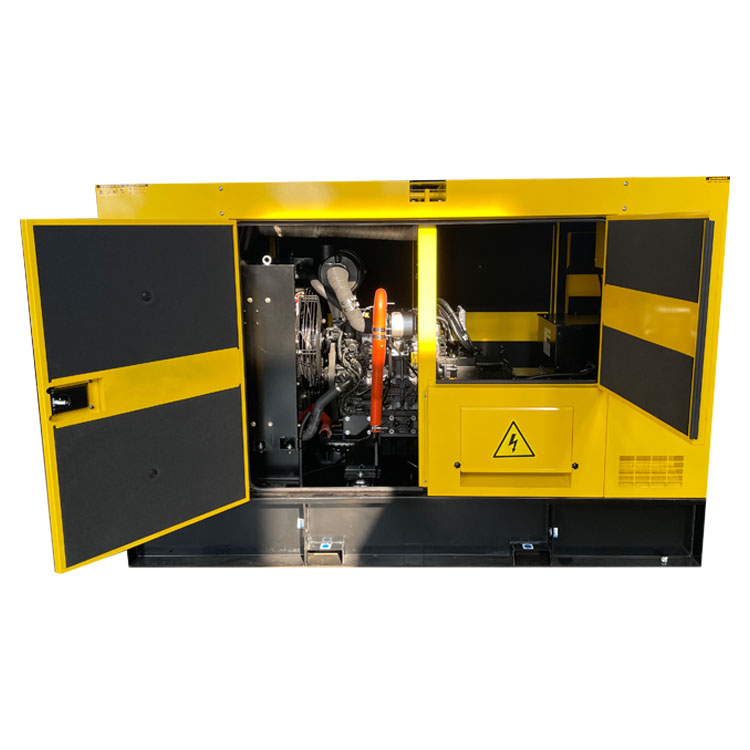

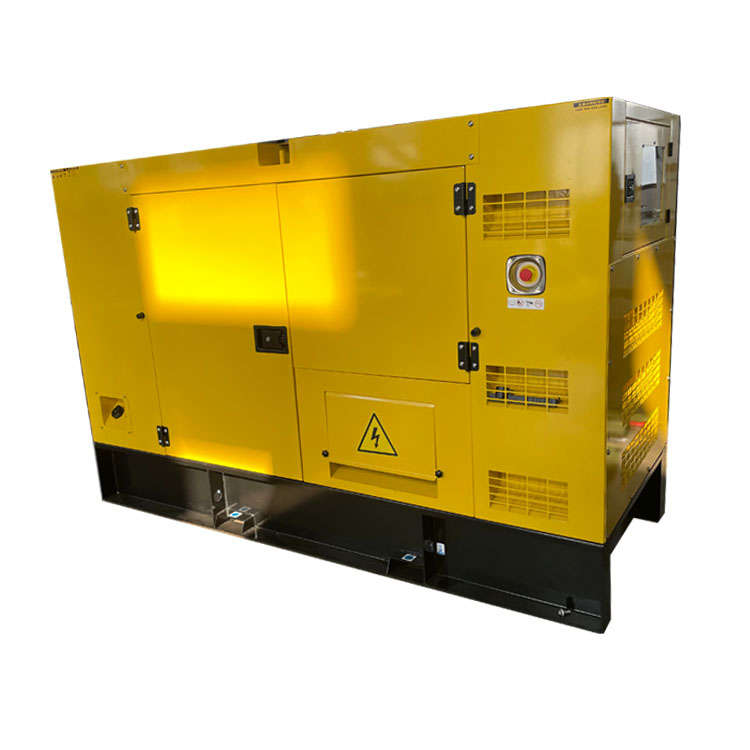

HYUNDAI Silent Type Diesel Generator

inquiry
  • Description
  • 50HZ
  • 60HZ

HYUNDAI located in Korea first started producing diesel engines in 1958.The products have a high cost performance with the power range from 20KW to 160KW, meet the domestic and international standards like GB/T2820、GB1105、YD/T502、ISO8525-3、ISO3046、ISO8525 and US EPA and CARB emission standards.HYUNDAI gen-set system can provide multiple protection functions for the oil temperature、water temperature、oil pressure、speed and overload of the unit, mainly used in national defense、aviation、vehicles、ships、construction machinery and generator sets.HYUNDAI diesel engines are recognized by the world for the small size、compact weight、strong sudden load capacity、low noise and reliability.

Features of HYUNDAI generator set

1.Exquisite technology

—Ex-factory testing in accordance with HYUNDAI strict global inspection standards

—Metal plate spraying process strictly achieves HYUNDAI global standards to ensure the set have excellent rust-resistant performance and high quality

2.System integration

—Easy selection of controller

—Provide a complete standard configuration of 8-hour capacity fuel tanks,batteries and other options like heaters used in cold environment etc.

3.Security protection system

—More protection functions for oil temperature、water temperature、oil pressure、speed、water(oil)level and overload, full consideration about safety issues of each component

—Equipped with insulated exhaust sheath, battery disconnector, cable connection sheath to prevent the accidents of maintenance personnel.

4.Quick start-up

Allow three times consecutive start with a minimum start interval of 10 seconds each time to meet customer’s needs in emergent situation.

5.Stable and reliable

—Full load operation at ambient temperature of 40 degrees without power reduction

—Rain-proof control cabinet with IP23 protection class to prevent electrical components damage or leakage caused by rain leaking.

ModelPrime Power (KVA/KW)Standby Power (KVA/KW)Engine ModelDimension (MM)Weight (KG)
TPD149DS5149119164131DP086TA3600×1330×20502770
TPD168DS5168134185148P086TI-13600×1330×20502850
TPD200DS5200160220176P086TI3600×1330×20502850
TPD229DS5229183252202DP086LA3600×1330×20502850
TPD273DS5273218300240P126TI4300×1422×21063480
TPD300DS5300240330264P126TI-II4300×1422×21063700
TPD365DS5-1365292400320DP126LB4300×1422×22503860
TPD365DS5-2365292400320P158LE-14300×1822×22504510
TPD408DS5408326448359P158LE4300×1822×22504510
TPD463DS5463370509407DP158LC4300×1822×22504850
TPD529DS5529423582465DP158LD4300×1822×22504850
TPD574DS5574459631505DP180LA4800×1822×25305200
TPD636DS5636509700560DP180LB4800×1822×25306200
ModelPrime Power (KVA/KW)Standby Power (KVA/KW)Engine ModelDimension (MM)Weight (KG)
TPD180DS6180144198158DP086TA3600×1330×20502770
TPD193DS6193154212170P086TI3600×1330×20502850
TPD229DS6229183251201P086TI3600×1330×20502850
TPD255DS6255204280224DP086LA3600×1330×20502850
TPD310DS6310248341273P126TI4300×1422×21063480
TPD344DS6344275378303P126TI-II4300×1422×21063700
TPD401DS6-1401321441353DP126LB4300×1422×22503860
TPD401DS6-2401321441353P158LE-14300×1822×22504510
TPD444DS6444355488390P158LE4300×1822×22504510
TPD520DS6520416572457DP158LC4300×1822×22504850
TPD566DS6566453623498DP158LD4300×1822×22504850
TPD630DS6630504693554DP180LA4800×1822×25305200
TPD679DS6679543746597DP180LB4800×1822×25306200
TPD745DS6745596819655DP222LA4800×1822×25306210
TPD794DS6794635873698DP222LB4800×1822×25306338
TPD843DS6843674927741DP222LC4800×1822×25306338
