Top Quality Mini 6KW 8KW 16KW 24KW 32KW Marine Diesel Engine Generator Set Sea Water Cooling Diesel Generators for Boat Yacht

Easy maintenance: water-cooled, four stroke, 90 ° V-shaped cylinder arrangement, turbo can be used for both cold and wet cylinders, dry exhaust manifold, easy maintenance.
The top of the piston adopts wear-resistant cast iron ring and valve seat ring structure, with a long service life. Detroit jet cooling effectively solves the cooling problem, making the operation of the generator set more reliable.
Energy saving and environmental protection: Unique electronic fuel pump unit with cylinder direct injection, superior to German TA Luft emission standards, electronic intelligent management, lower fuel consumption, and leading the way in breaking through the 200g/kWh bottleneck.
Excellent performance: low operational stability and vibration, low fuel and oil consumption rates, long service life, long overhaul time, and low noise.

inquiry
  • Description
  • Technical Specification

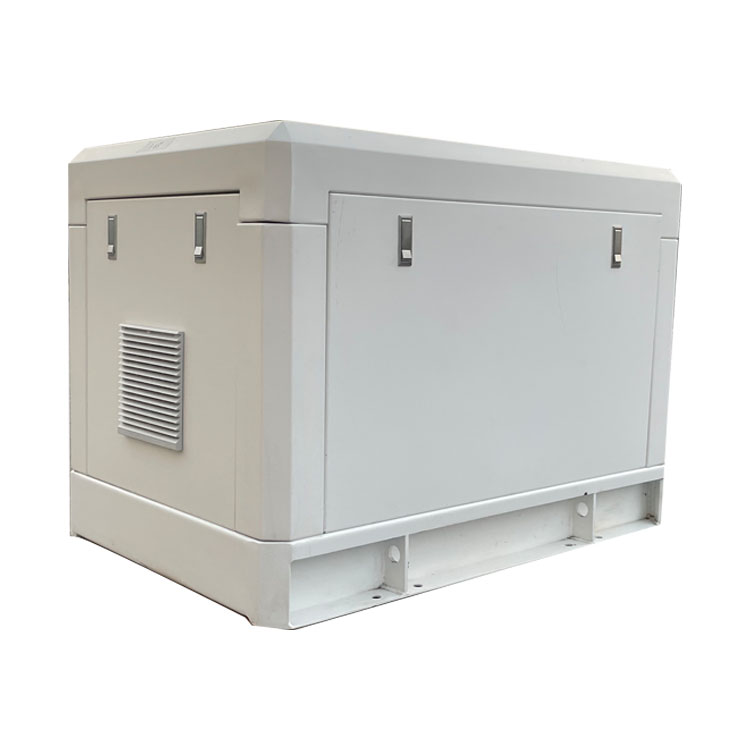

Yacht marine generators are the ideal choice for professional sailing and boating. yacht marine generators are compact, light, quiet and very efficient. The generatoring set is housed within a sound insulated capsule which shields against operational noise and vibration. When correctly installed they will operate practically unnoticed.

A quiet generator is of upmost importance when pleasure cruising. yacht marine generators are so compactly constructed that they require only the minimal space onboard.

Main Features

High quality components from the top international manufactures, with high reliability and perfect performance.

Designed for the tough demands of marine applications with superior durability and high uptime.

Technically mature and state of the art in engine development, our engines offer the security and reliability in every-day use.

The maintenance cost is low and the repair cycle is long.

All elements of the generator set are engineered to operate with complete system harmony for optimal performance and maximum efficiency.

Fit with electronic governing for optimal step load acceptance.

Extended service intervals.

ModelRated Power

(kVA/kW)

EngineAlternatorControl boxNumber of cylindersdisplacement（L）Dimension Open Type (mm)Weight Open Type (kg)Dimension Silent Type (mm)Weight Silent Type (kg)Emission
CCFJ7J-W18.8/73C11G3/8.3kW@1500rpmPM0 44EHMC900031.07968*480*6602801040*560*760330T3
CCFJ14J-W117.5/143C11G1/16.3kW@3000rpmPI0 42FHMC900031.071000*480*6602961080*560*760350T3
CCFJ16J-W120/164D24G6/18.5kW@1500rpmPM1 44EHMC900042.451250*630*7804551420*720*880505T3
CCFJ20J-W125/204D24G7/23kW@1500rpmPM1 44GHMC900042.451300*630*7804801380*720*880530T3
CCFJ24J-W130/244D24G2/28kW@1500rpmPM1 44HHMC900042.451325*630*7804951400*720*880550T3
CCFJ28J-W135/284D24G1/32kW@1500rpmPM1 44JHMC900042.451355*630*7805081430*720*880560T3
CCFJ32J-W140/324D24G0/36kW@1500rpmUCM 224DHMC900042.451390*630*7805601460*720*880600T3
CCFJ7J-W28.8/73D11G3-4/8.3kW@1500rpmPM0 44EHMC900031.07968*480*6602801040*560*760330T4
CCFJ14J-W217.5/143D11G0-4/16.9kW@3000rpmPI042 FHMC900031.071000*480*6602961080*560*760350T4
CCFJ16J-W220/164D24TG4-4/18.5kW@1500rpmPM1 44EHMC900042.451250*630*7804551420*720*880505T4
CCFJ20J-W225/204D24TG3-4/23kW@1500rpmPM1 44GHMC900042.451300*630*7804801380*720*880530T4
CCFJ24J-W230/244D24TG2-4/28kW@1500rpmPM1 44HHMC900042.451325*630*7804951400*720*880550T4
CCFJ28J-W235/284D24TG1-4/32kW@1500rpmPM1 44JHMC900042.451355*630*7805081430*720*880560T4
CCFJ32J-W240/324D24TG0-4/36kW@1500rpmUCM 224DHMC900042.451390*630*7805801460*720*880600T4
CCFJ8J-W10/83C11G3/A/9.1kW@1500rpmPM044 FHMC900031.071000*480*6602961080*560*760350Euro III
CCFJ10J-W12.5/103C11G2/A/11.1kW@1800rpmPM044 FHMC900031.071000*480*6602961080*560*760350Euro III
CCFJ16J-W320/163C11G1/A/17.5kW@3000rpmPI042 GHMC900031.071018*480*6603051100*560*760360Euro III
CCFJ16J-W420/164D24G4/A/18.5kW@1500rpmPM1 44EHMC900042.451250*630*7804551420*720*880505Euro III A
CCFJ20J-W325/204D24G2/A/23kW@1500rpmPM1 44GHMC900042.451300*630*7804801380*720*880530Euro III A
CCFJ24J-W330/244D24TG2/A/28kW@1500rpmPM1 44HHMC900042.451325*630*7804951400*720*880550Euro III A
CCFJ28J-W335/284D24TG1/A/32kW@1500rpmPM1 44JHMC900042.451355*630*7805081430*720*880560Euro III A
CCFJ32J-W340/324D24TG0/A/36kW@1500rpmUCM 224DHMC900042.451390*630*7805801460*720*880600Euro III A
